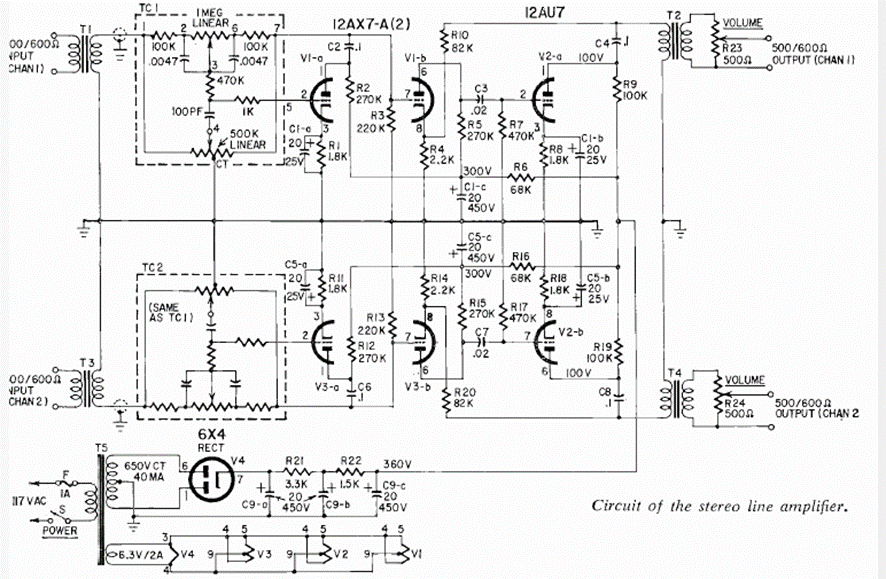

Originally indicated for applications in sound distribution via 600-ohm lines, this circuit was released in a Radio Electronics in February 1964. The circuit uses well-known tubes and has excellent performance for distributing stereo signals. Power supply is given using triple filtering capacitor.
