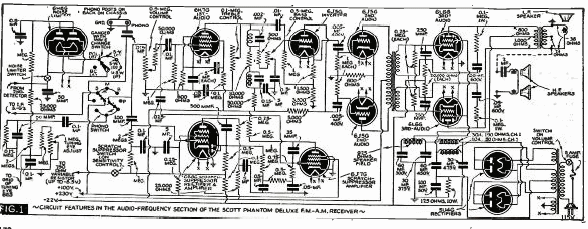

In the figure we have the diagram of an AM and FM receiver from a publication from the 1940s. The circuit has a good power output with tubes and counterphase and a supply with two rectifier double tubes. The circuit has 9 tubes, of common types at the time.
