1-Tube VFO (T1687E)

Details
Written by: Newton C. Braga

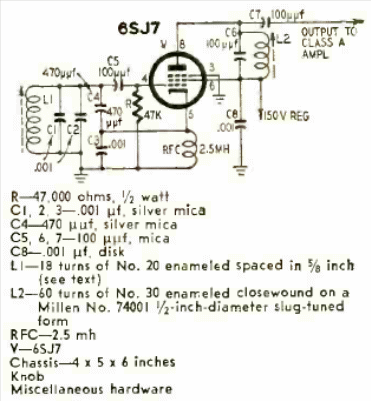

This stable circuit was found in Radio Electronics magazine from June 1958. The power supply is not given and the audio signal must be applied to an external amplifier.
