Small phonograph amplifier (T1266E)

Details
Written by: Newton C. Braga

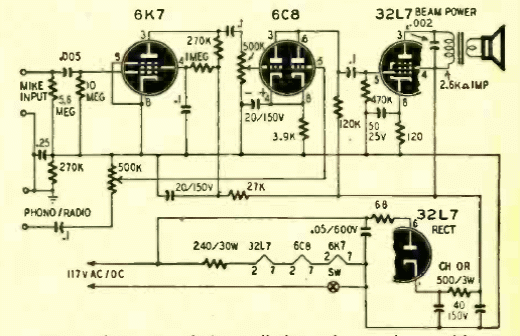

This amp has a mic and turntable input. We found it in a Radio Craft from May 1948. The circuit uses a transformerless source with the tube heaters connected in series. The power is a few watts.
