Improved reflex receiver (T1561E)

Details
Written by: Newton C. Braga

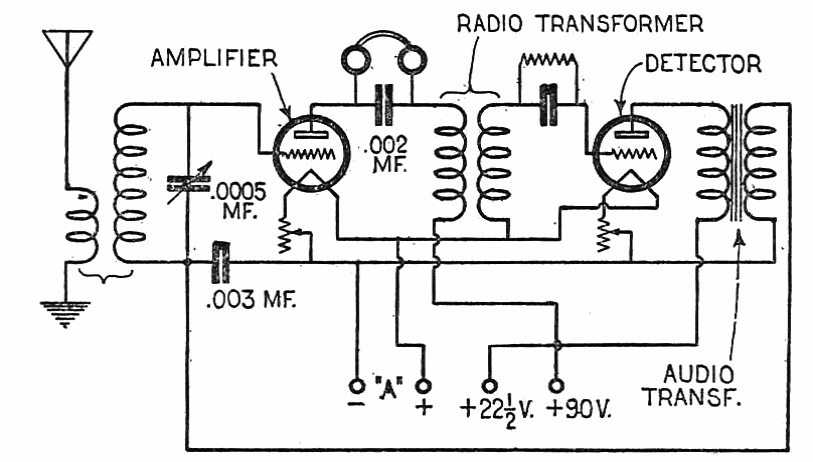

This circuit is from a 1924 book by Gernsback. The receiver uses two tubes and listens to headphones. Power is supplied by battery with the indicated voltages.




| Clique na imagem para ampliar |
