Audio Oscillator (T1339E)

Details
Written by: Newton C. Braga

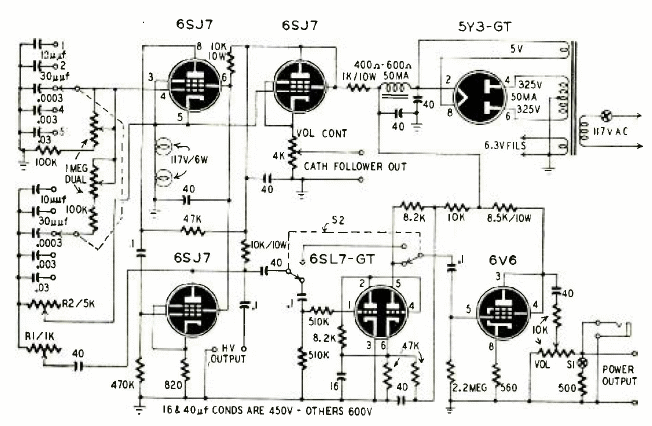

Featured in the February 1949 Radio Electronics magazine, this benchtop instrument generates multi-range audio signals. The circuit has 6 tubes including the rectifier.
