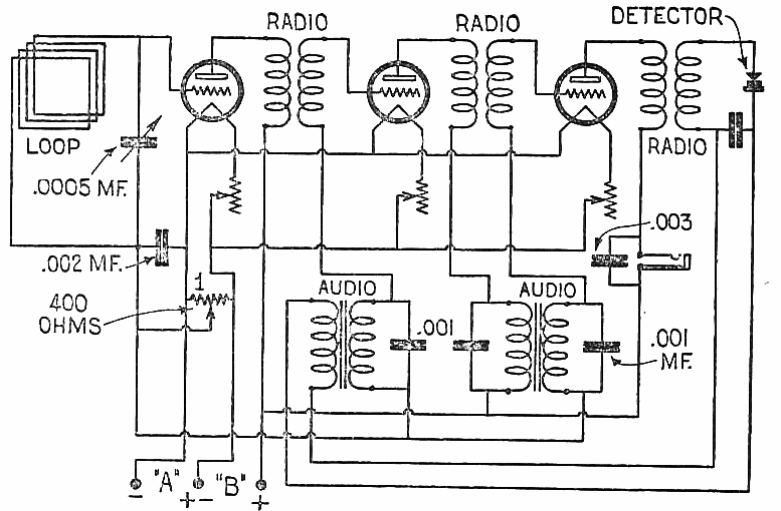

Reflex receiver with loop antenna (T1659E)

This 3-valve receiver was found in a publication by Edelman from 1924. The circuit has two supply voltages, B being 60 to 90 V.

| Clique na imagem para ampliar |

Low Pass Second Order Filter 741 (CB25818E)
This unity gain circuit was found in the February 1995 Electronics Now magazine. The frequency is 10 kHz,...
Pulse Compressor and Expander (CB6658E)
Found in a 1967 Electronic Design, this transistorized circuit compresses and then expands a pulse....
Simple pulse extender (CB8921E)
This TTL pulse stretcher or stretcher was found in a 90's EDN. The time constant R x C1 determines...
