Small phonographic amplifier (T1547E)

Details
Written by: Newton C. Braga

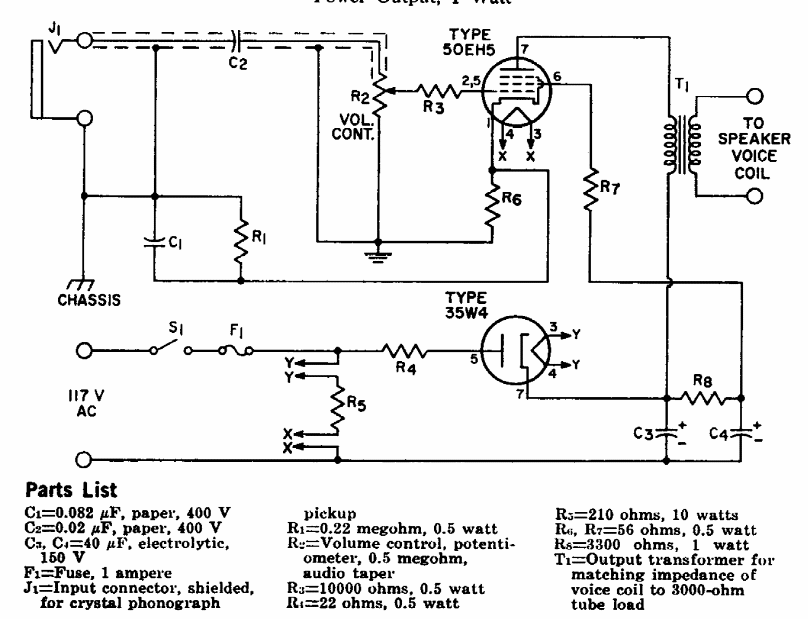

This small 1W turntable amplifier was found in the 1975 RCA tube manual. It is a commercial circuit at the time.
