Low Distortion Preamplifier (T1551E)

Details
Written by: Newton C. Braga

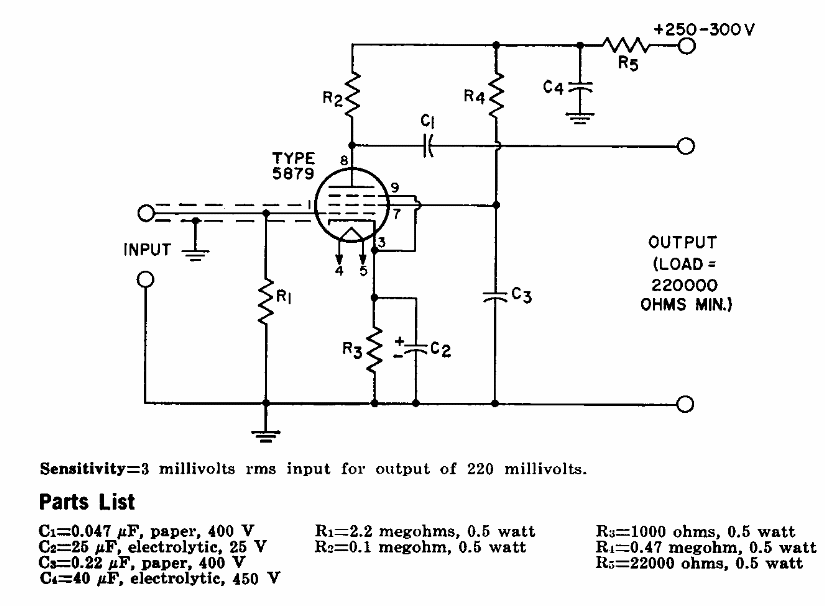

This circuit is from a 1975 RCA tube manual. It appears elsewhere on the site. R5 depends on the voltage of the amplifier with which it is used and can be changed.




| Clique na imagem para ampliar |
