Speaker output reflex receiver (T1653E)

Details
Written by: Newton C. Braga

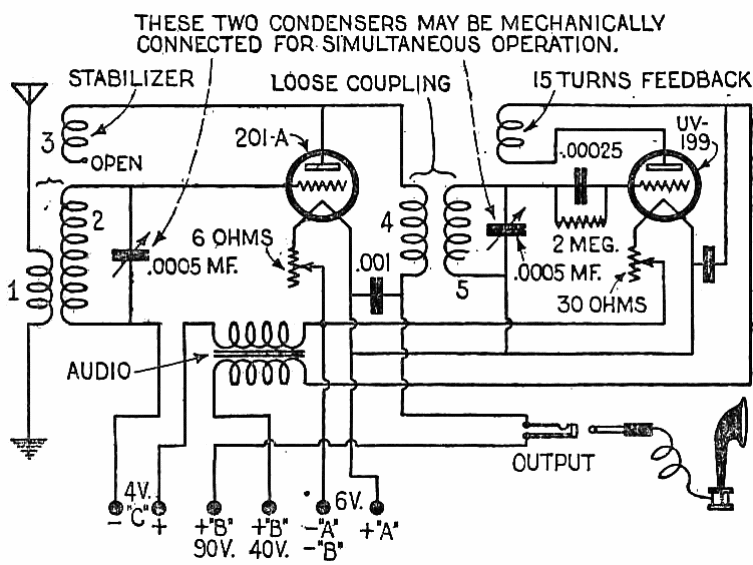

Found in a 1924 publication, this 2-valve receiver has a speaker output. Power comes from several batteries. Information about the coils is given.
