FM Tuner (T115E)

Details: Written by: Newton C. Braga

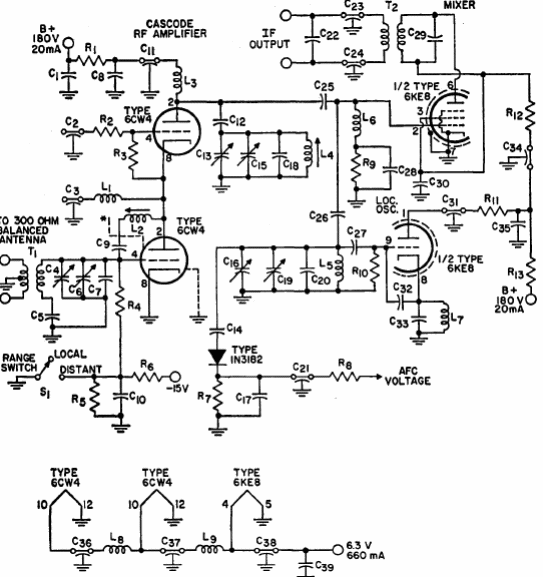

This circuit is from the 1970 RCA valve manual, consisting of a high quality tuned to be connected in high fidelity amplifier. The power supply is not given. Do not take details of the coils.
