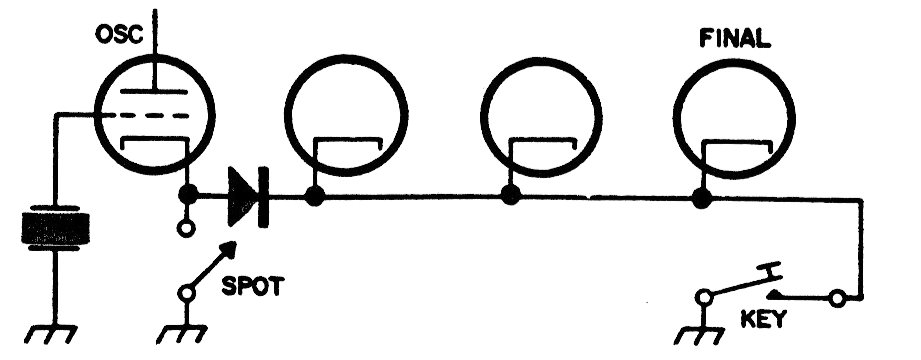

In the figure we have the way of using a diode to also control the oscillator of a telegraphic transmitter. The diode should have voltage and current according to the application. The circuit is from an old telecom manual.
