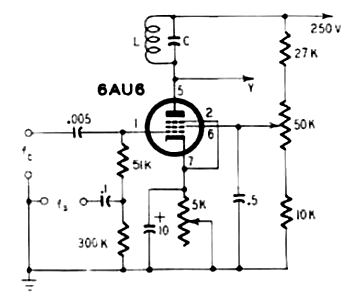

We find this circuit, indicated for oscilloscope applications of the time, in a 1950s documentation. The current is very low and the signal modulation is done in amplitude. In the inputs we have the carrier and the modulation and in the output Y the modulated signal.
