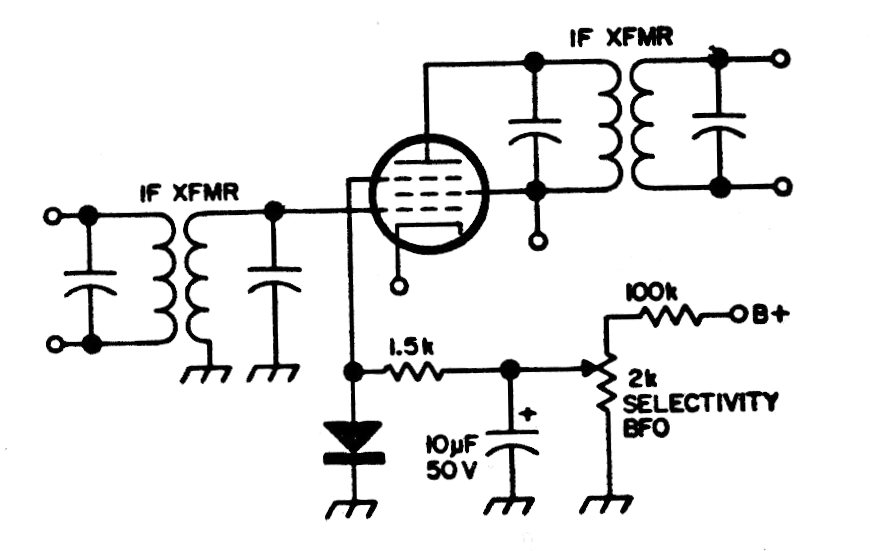

We found this circuit in a 1980s telecommunications publication. The circuit makes use of a diode as the basis for receiving SSB and CW signals in a standard tube receiver. The circuit is installed between the receiver's first and second IF coils.
