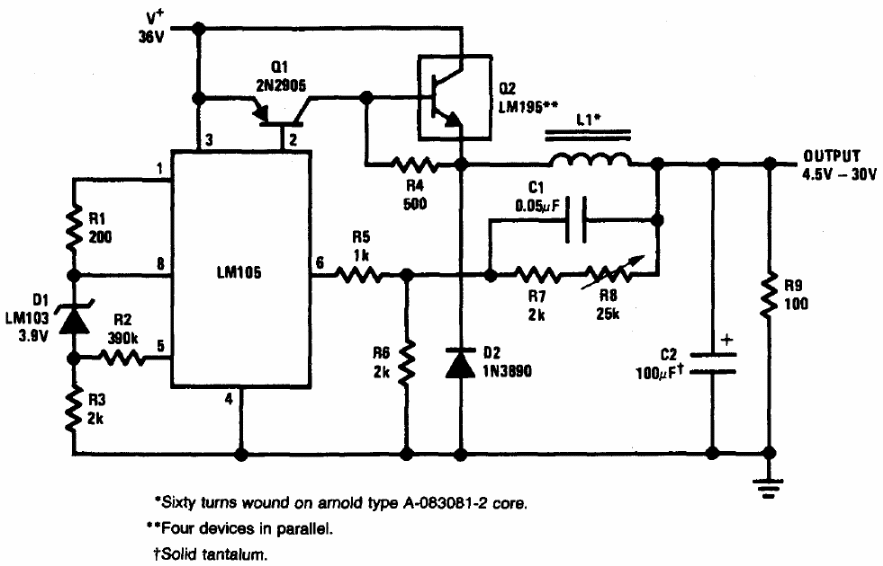

The components used in this circuit are not common today, but the configuration can serve as a basis for more modern projects. The circuit is suggested by National Semiconductor in its Linear Applications Handbook.
| Clique na imagem para ampliar |
4.5 V to 30 V Switching Regulator LM106 (CB14265E)
- Details
- Written by: Newton C. Braga
