Synchronized Detector (CB6671E)

Details
Written by: Newton C. Braga

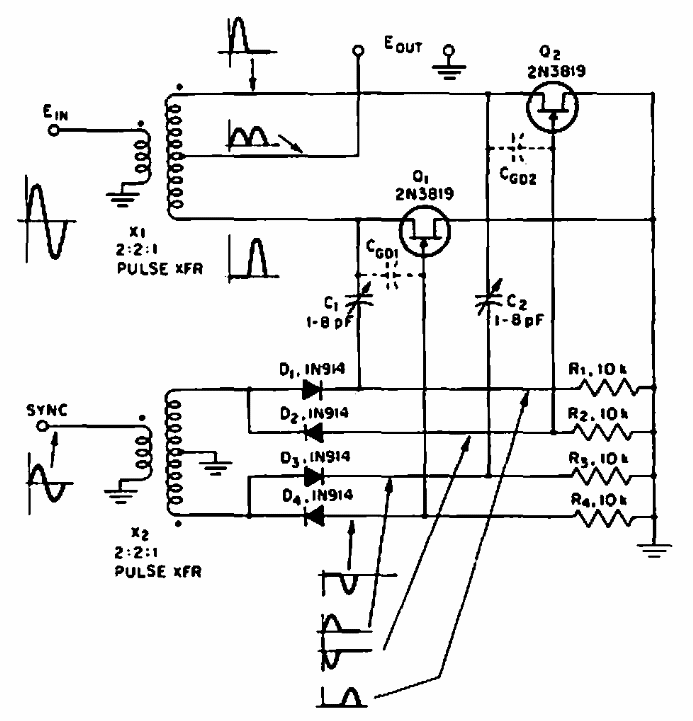

    This circuit was obtained from an American documentation from 1976. The circuit has a dynamic range of 100 kHz. FETs may be replaced by current equivalents.
