1 W Amplifier (CB6297E)

Details
Written by: Newton C. Braga

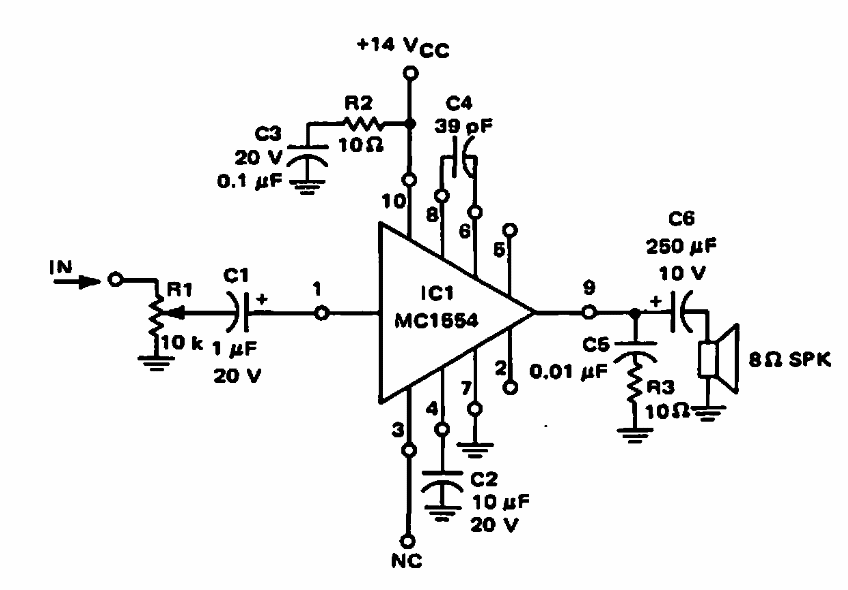

    Using a Motorola MC1684 integrated circuit this 1968 amplifier provides 1 W to a 8 ohm load. The response ranges from 20 to 20 000 Hz and the distortion is only 1% at 1 kHz.
