600 W Dimmer (CB7205E)

Details: Written by: Newton C. Braga

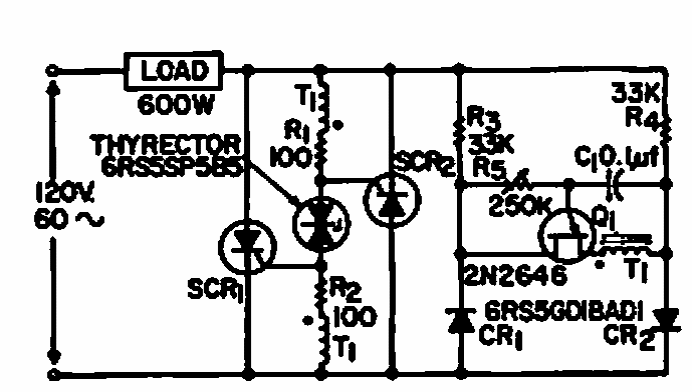

This full-wave dimmer with SCRs was found in General Electric documentation from 1965. The circuit uses a unijunction and serves only for incandescent lamps.
