86 dB Gain Stage (CB6118E)

Details: Written by: Newton C. Braga

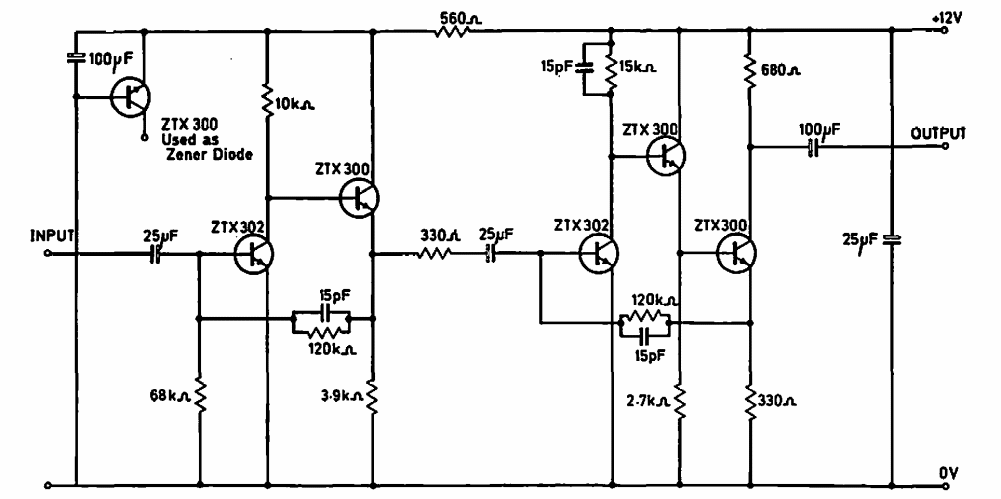

This circuit of the 70's uses transistors of the time. The circuit can amplify signals from 10 Hz to 100 kHz and modern equivalent components can be used. The circuit is from Ferranti.
