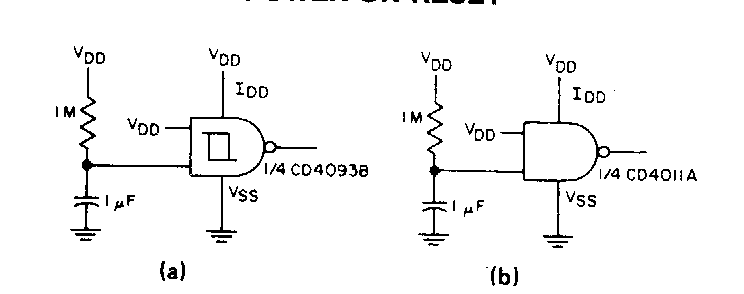

Power on reset (CB7176E)

These reset circuits when the power is turned on were found in an 80's EDN. The circuit also applies to other logic.

| Clique na imagem para ampliar |
