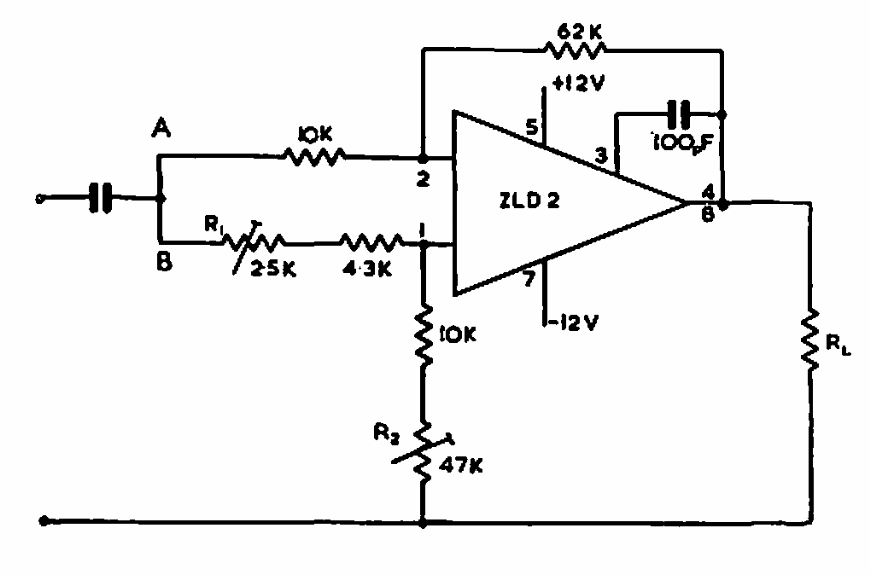

This circuit was found in Raytheon's 1967 documentation. The circuit uses an operating of the era, but the configuration can be applied to modern operational amplifiers.
| Clique na imagem para ampliar |
90 dB CMRR Amplifier (CB6637E)
- Details
- Written by: Newton C. Braga
