60 kHz ferrite antenna (CB6981E)

Details: Written by: Newton C. Braga

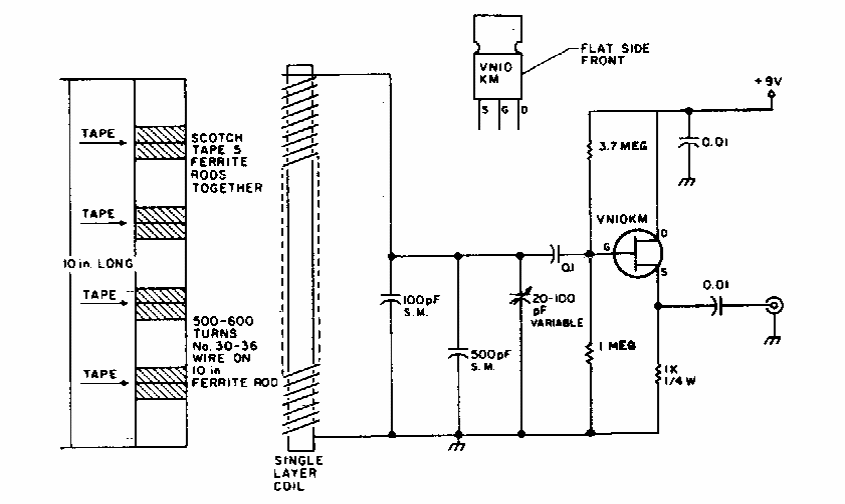

Found in a publication for radio amateurs from the 1980s, this circuit amplifies signals in the 60 kHz band (VLF), Winding data from the ferrite antenna are provided along with the diagram.
