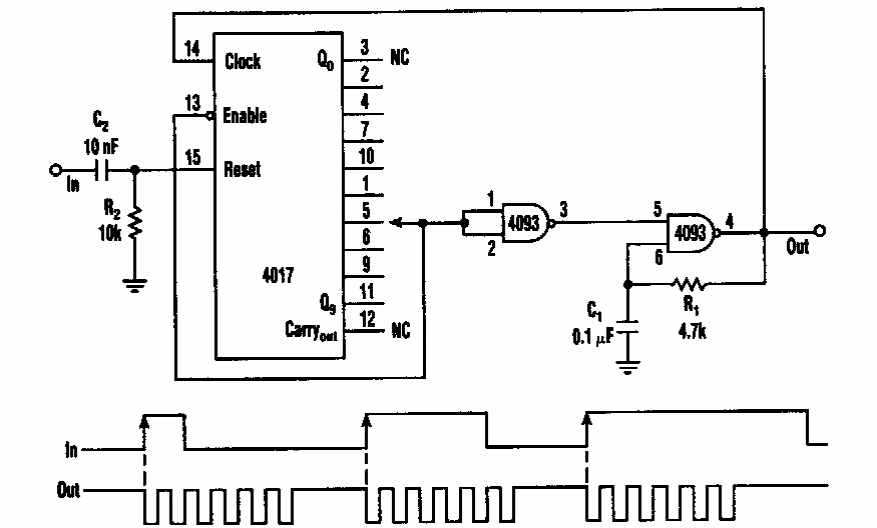

We found this circuit in an Electronic Design. The main integrated circuit is the 4017. The frequencies are determined by the RC circuits as well as the duration of the generated pulse train.
| Clique na imagem para ampliar |
Pulse train generator (CB7000E)
