Frequency comparator (CB6902E)

Details
Written by: Newton C. Braga

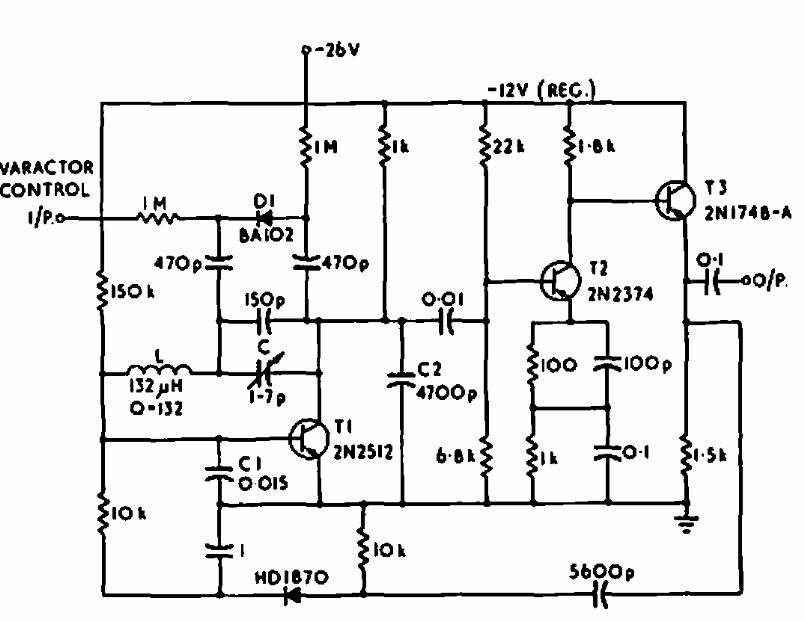

     We found this circuit in a 1967 IEEE documentation. The circuit uses discrete components of the time based on the 1.13 MHz frequency used with oscilloscopes at the time.
