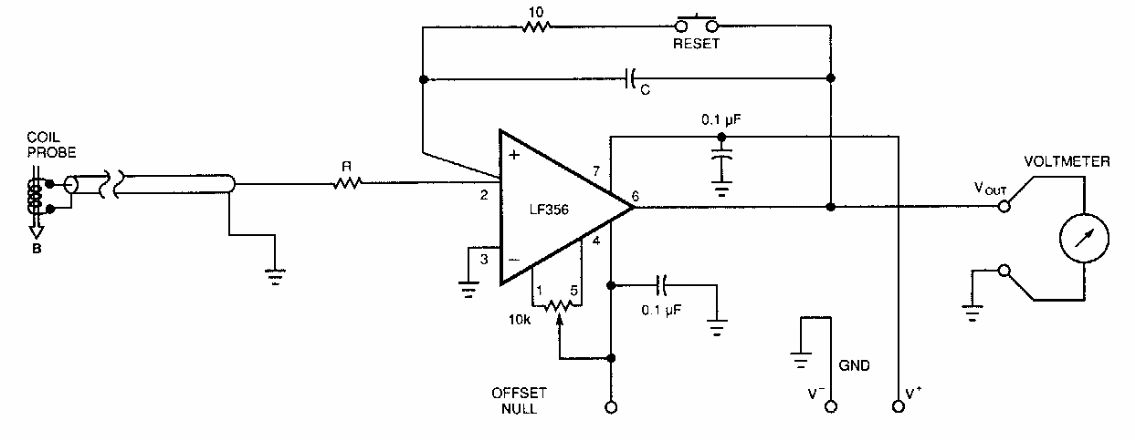

Found in an EDN from the 80's, this circuit makes use of an operational one of the time. The circuit can use modern operating equivalents and the sensor consists of a pick-up coil. The output voltage is proportional to the field in the sensor coil.
| Clique na imagem para ampliar |
