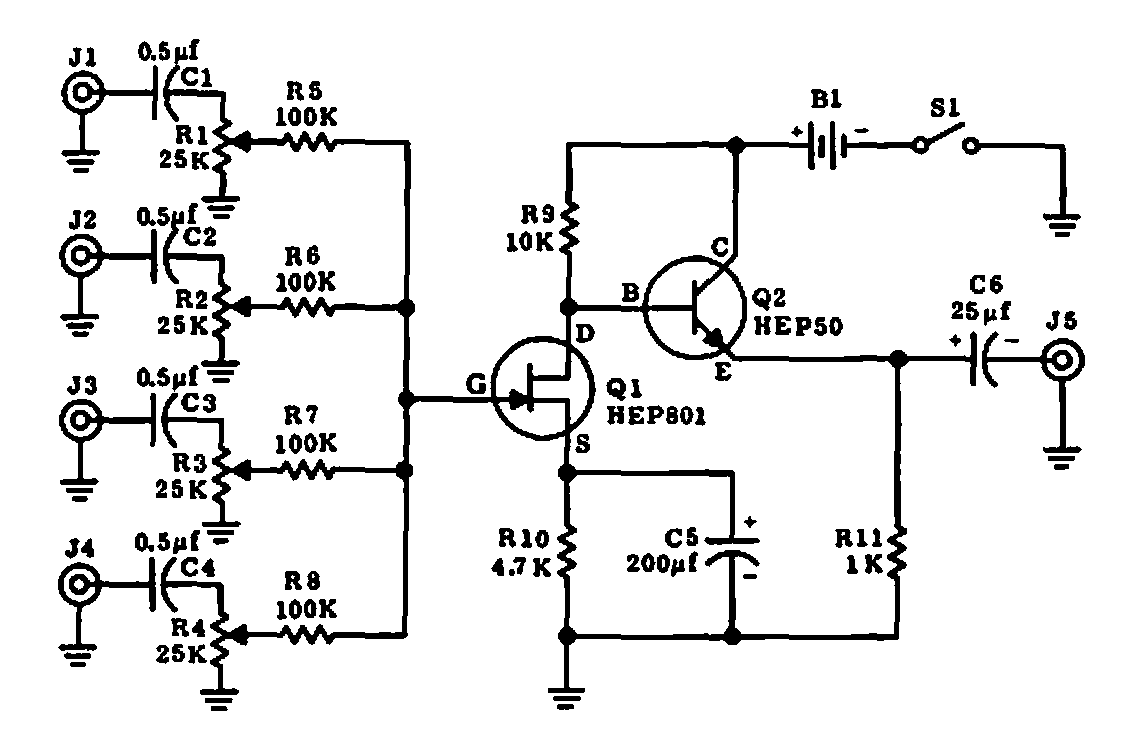

This setting appears with variations at various points on this site. This is from a Motorola documentation from 1966. The circuit uses company transistors that can be replaced by modern equivalents such as the BF245 and BC548.
| Clique na imagem para ampliar |
