We found this circuit with transistors in a Philips documentation from 1968. The double transistor can be replaced by discrete married types. The power supply is symmetrical.
| Clique na imagem para ampliar |

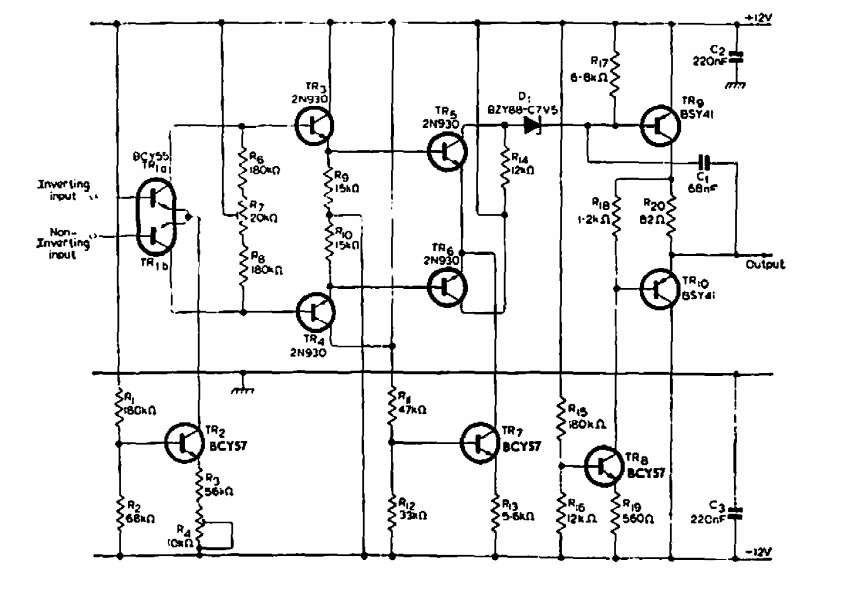

1 500 000 gain Amplifier (CB6641E)
- Details
- Written by: Newton C. Braga
