Automatic lamp control (CB6847E)

Details
Written by: Newton C. Braga

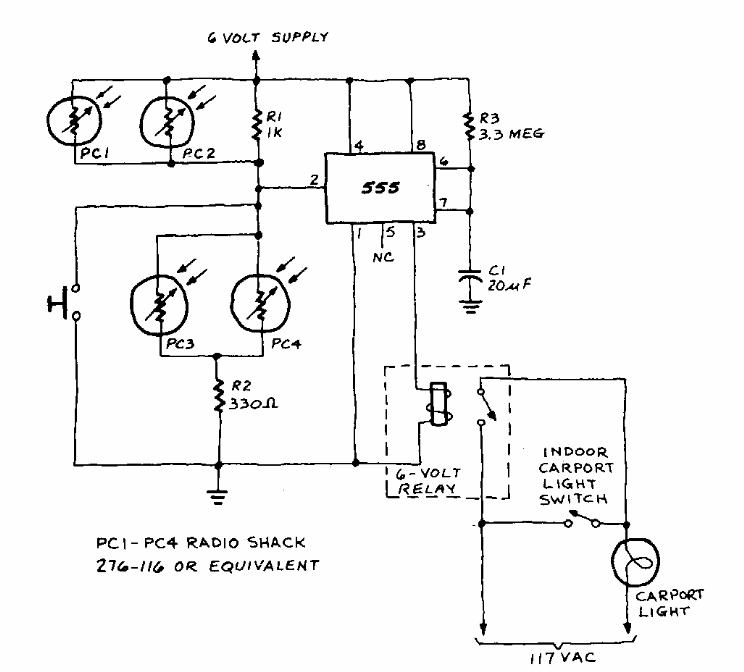

     Found in Radio Electronics, this circuit is intended to activate the lighting system of garages driven by the car's headlight.




| Clique na imagem para ampliar |
