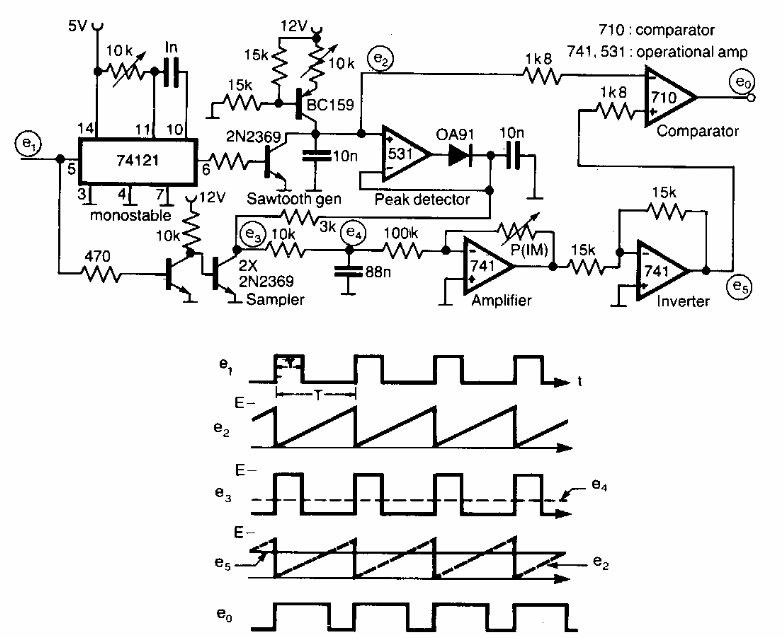

This circuit is intended to increase the width of a pulse. The circuit is TTL and can be used as a shield. We found it in an 80's Electronic Engineering.
| Clique na imagem para ampliar |
Pulse Width Multiplier (CB6349E)
