Voltage Recognizer (CB6498E)

Details
Written by: Newton C. Braga

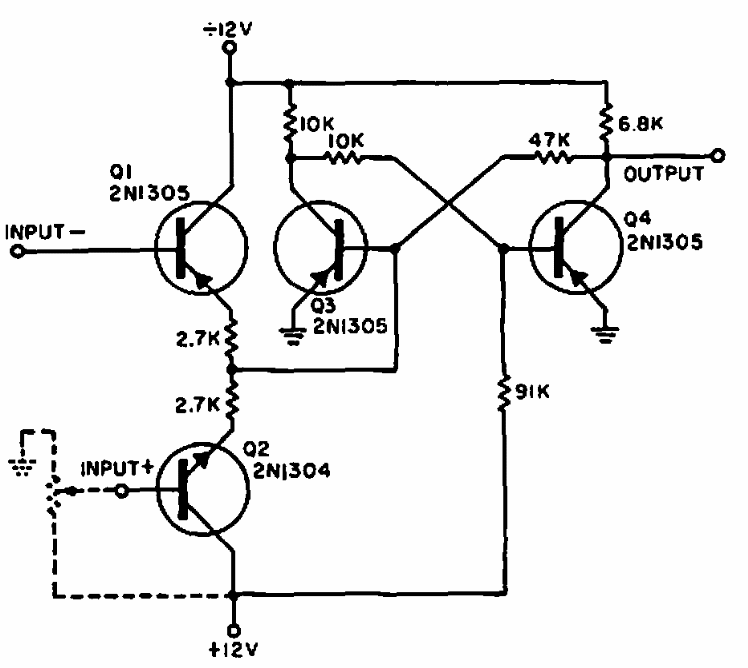

    This circuit triggers by choosing the higher of two voltages. The circuit is from a 1964 Electronic Design. The transistors are of the time and can be replaced by current equivalents.
