Peak Detector (CB6530E)

Details
Written by: Newton C. Braga

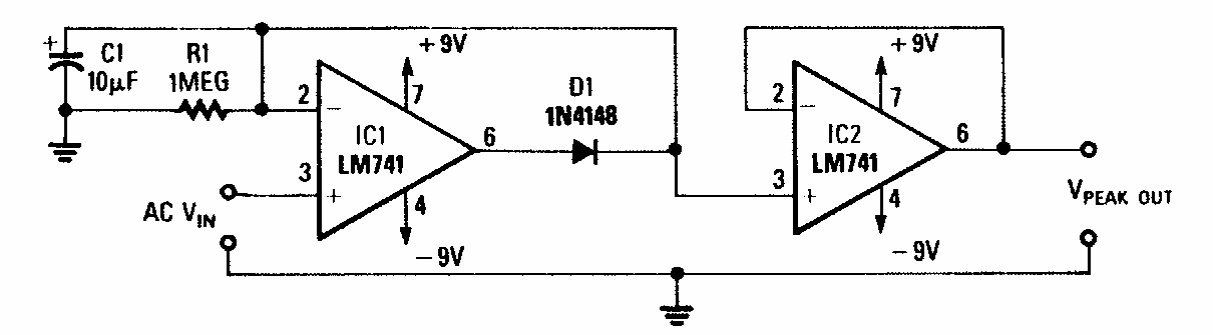

     Indicated on an 80's Radio Electronics, this circuit provides at its output a voltage that is the peak value of the input voltage. The supply voltage must be higher than the expected peak.
