Converter from 28 to 170 V (CB6577E)

Details
Written by: Newton C. Braga

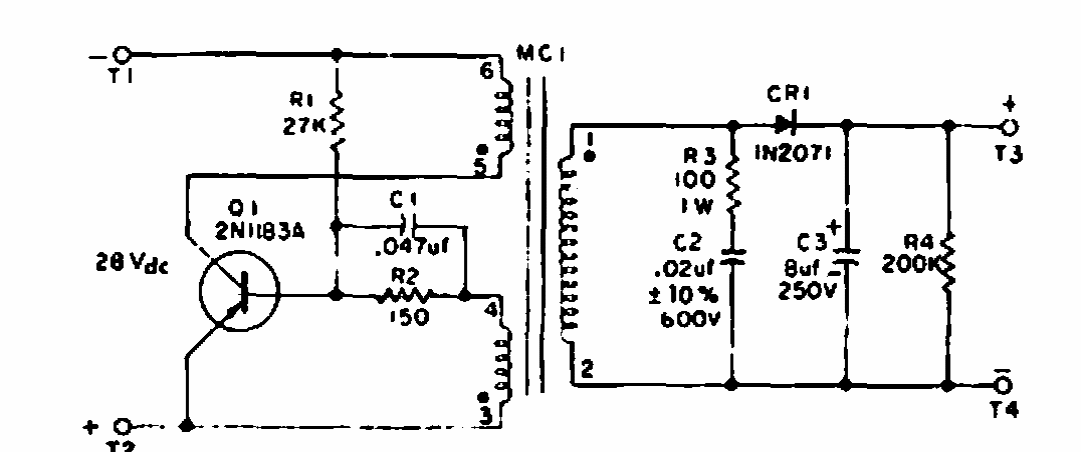

     This circuit was obtained from an American documentation of 1967. The circuit provides a 30 mA output current for driving standard Nixie indicator tubes at the time.




| Clique na imagem para ampliar |
