Windscreen Wiper interval timer (CB6332E)

Details
Written by: Newton C. Braga

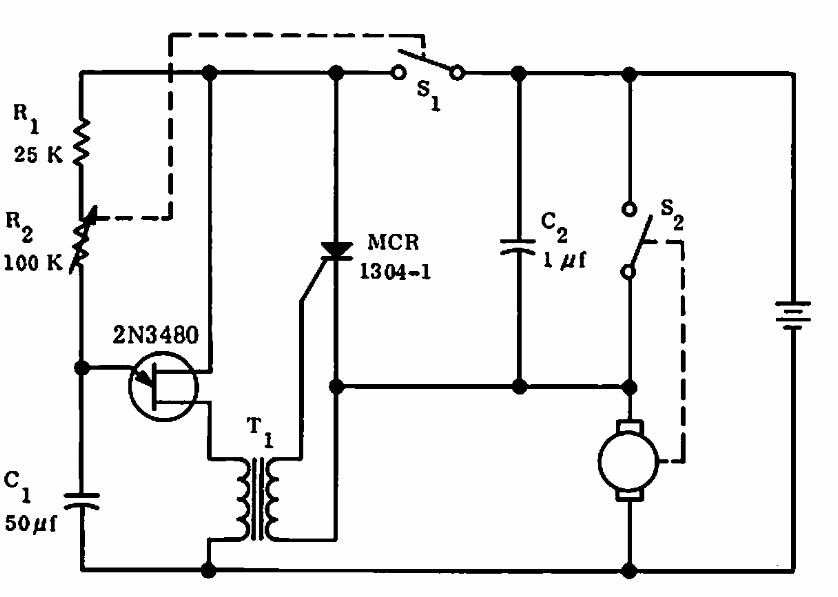

     This circuit is from a 1965 Motorola manual. It can be implemented with a common 2N2646 and a 106 Series SCR without problems. The pulse transformer has a 1: 1 turn ratio.




| Clique na imagem para ampliar |
