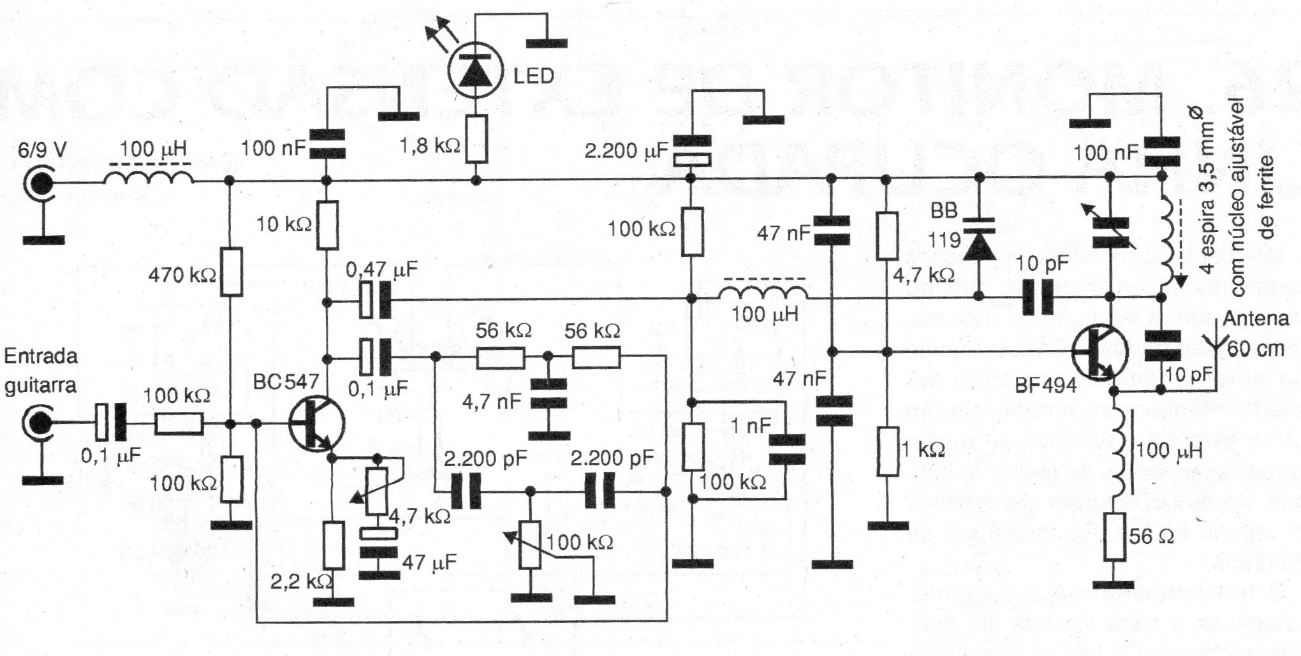

This guitar pedal was found in a 2004 documentation. The signal is transmitted to an FM receiver with the output connected to the amplifier. The circuit must be powered by a voltage of 6 to 9 V from battery or batteries. The audio cables must be shielded. The effect adjustment is carried out through the potentiometers.
| Clique na imagem para ampliar |
