Modulated Siren 555 (CB6421E)

Details
Written by: Newton C. Braga

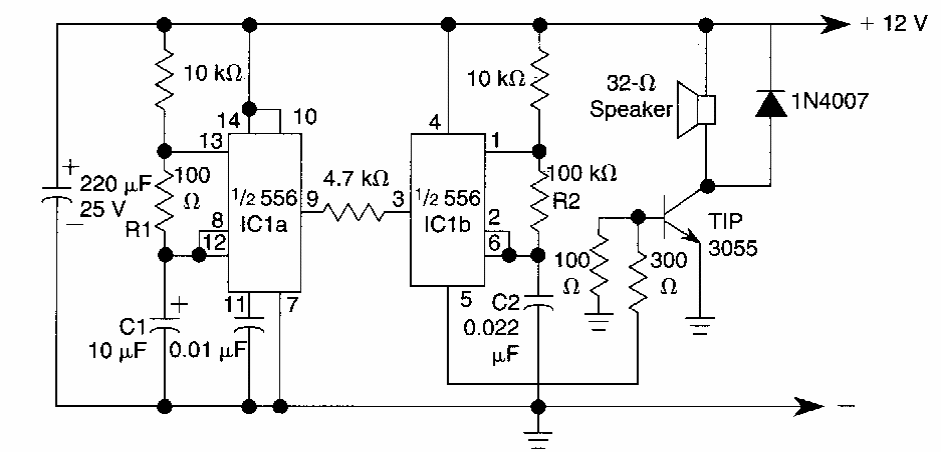

    In the original publication of the 90s a 556 consisting of a double 555 is suggested. The circuit drives a speaker with good power. The power transistor shall be fitted with a heat sink.




| Clique na imagem para ampliar |
