Jitter eliminator (CB6820E)

Details
Written by: Newton C. Braga

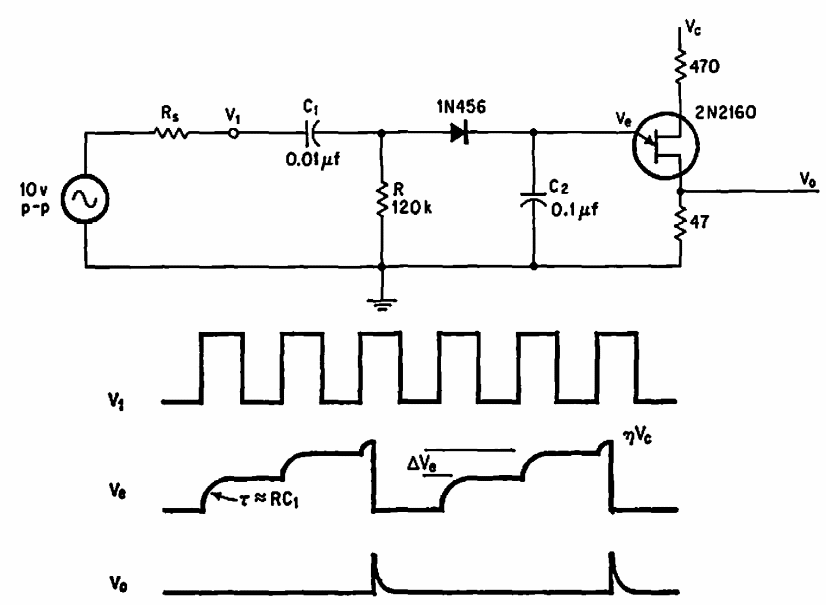

      Found in American documentation from 1969, this circuit operates in the frequency range 10 to 150 Hz providing signals as shown in the diagram itself.




| Clique na imagem para ampliar |
