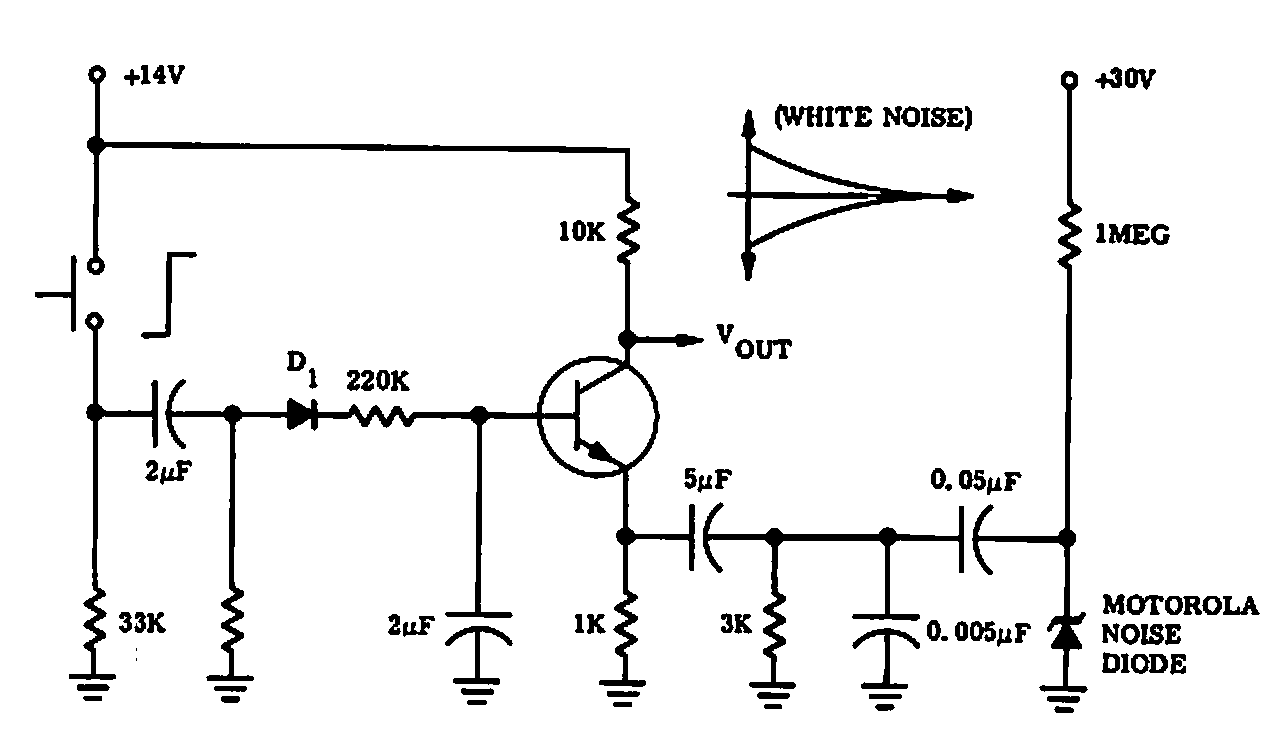

Cymbal Sound (CB6707E)

Details
Written by: Newton C. Braga



     Found in Motorola's 1967 documentation this circuit can use any general-purpose transistor. The signal should be applied to a good amplifier. The noise diode can be replaced with a common one.
