Xenon Trigger (CB6798E)

Details: Written by: Newton C. Braga

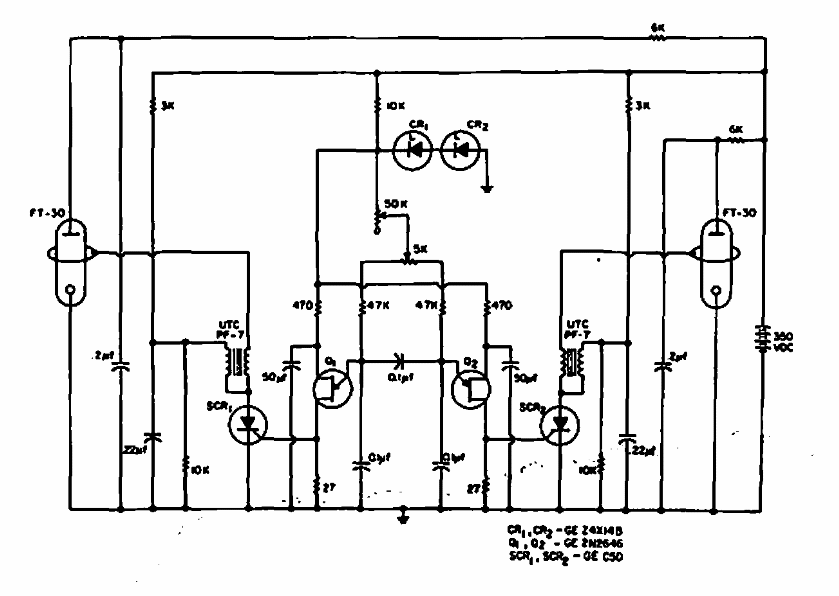

This circuit was obtained in a 1967 General Electric documentation. It alternately fires two xenon lamps in a signaling system. Observe the high continuous supply voltage.

| Clique na imagem para ampliar |
