ESR meter for capacitors (CB7377E)

Details
Written by: Newton C. Braga

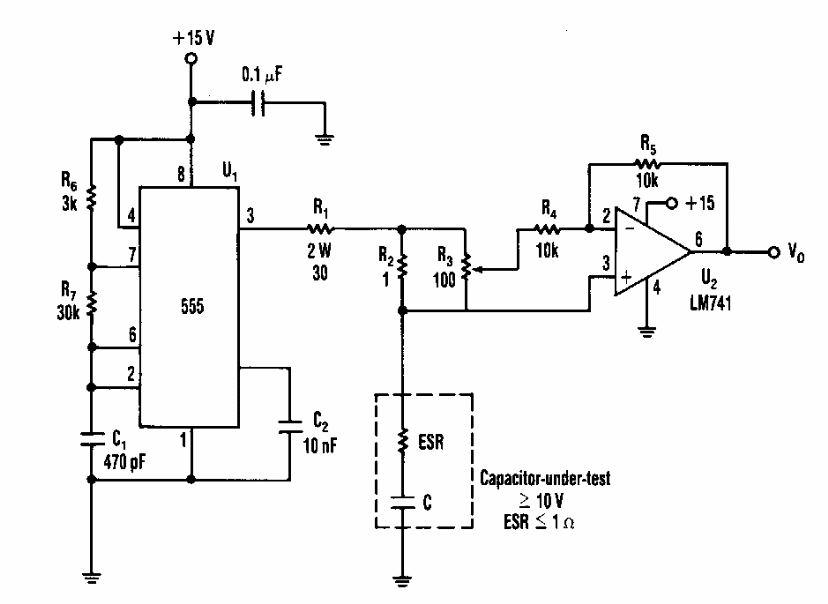

     Found in an Electronic Design from the 90's, this circuit measures the equivalent resistance in series of a resistor. The circuit operates at 50 kHz producing a rectangular signal.




| Clique na imagem para ampliar |
