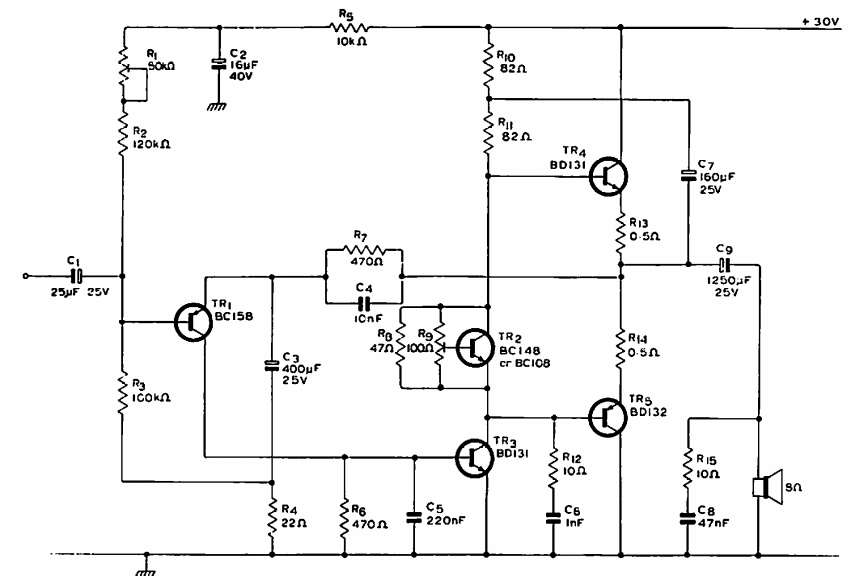

This circuit was found in a 1969 Mullard documentation. Used transistors can be replaced with modern equivalents. Output transistors may be BD135 and 136 with heatsinks.
| Clique na imagem para ampliar |
16 W Amplifier (CB6170E)
- Details
- Written by: Newton C. Braga
