Electronic Roulette (CB6362E)

Details
Written by: Newton C. Braga

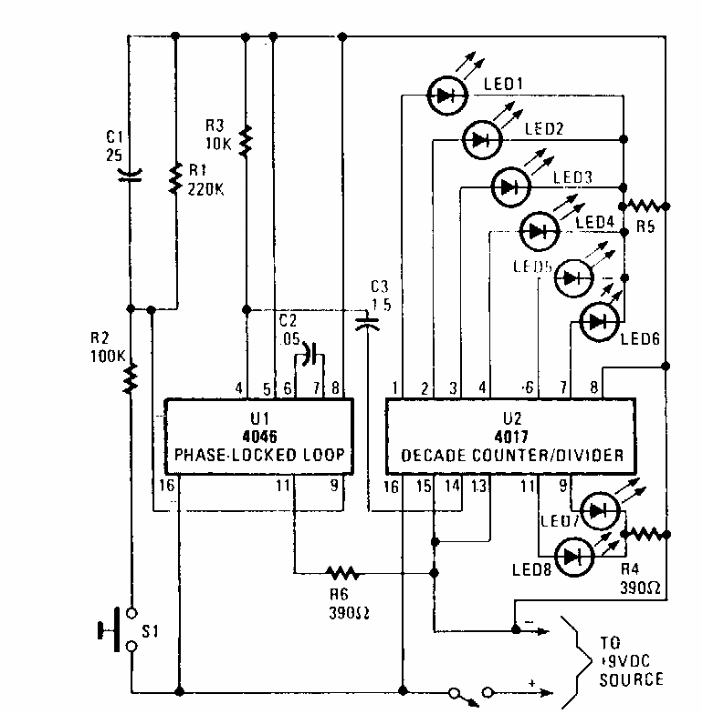

    This circuit that draws 1 out of 8 LEDs was found in an 80's American documentation. The circuit can also work with an astable using the 555 instead of the 4046 which is not a common component today.
