Economic inverter (CB7178E)

Details
Written by: Newton C. Braga

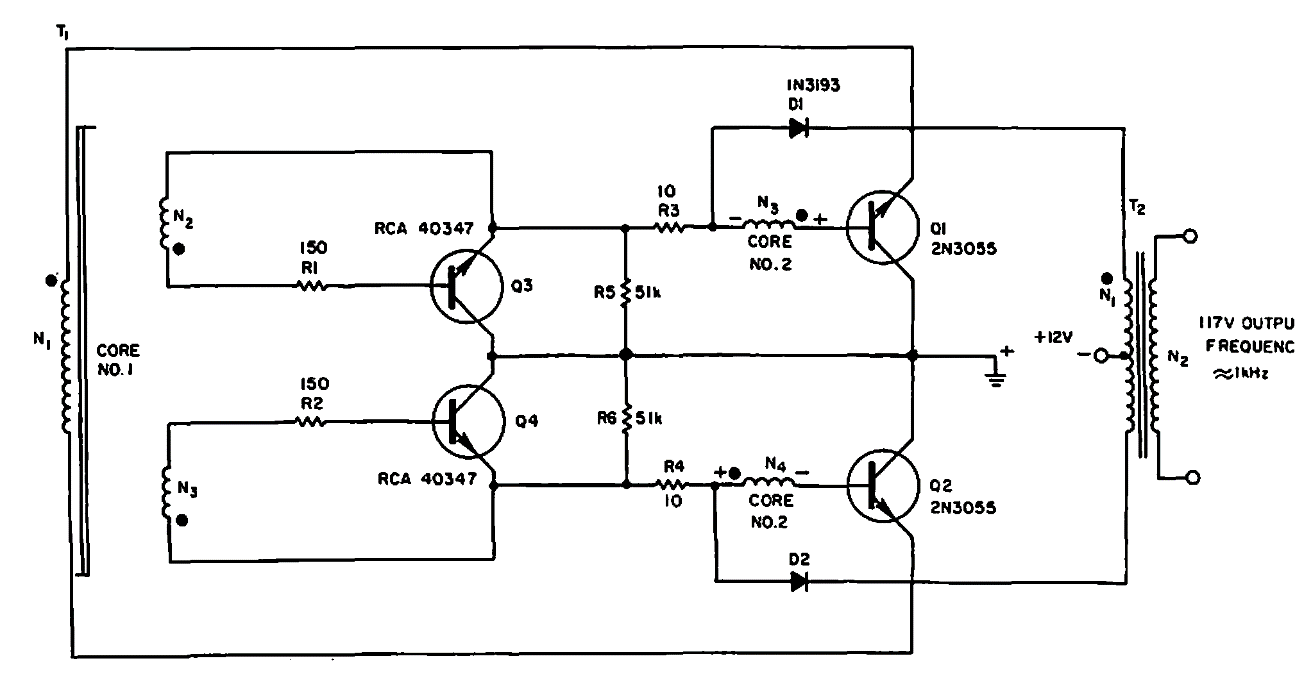

     This circuit with 117 V output was found in a 1969 Electronic Design. Drive transistors admit equivalents and information about transformers is not given.
