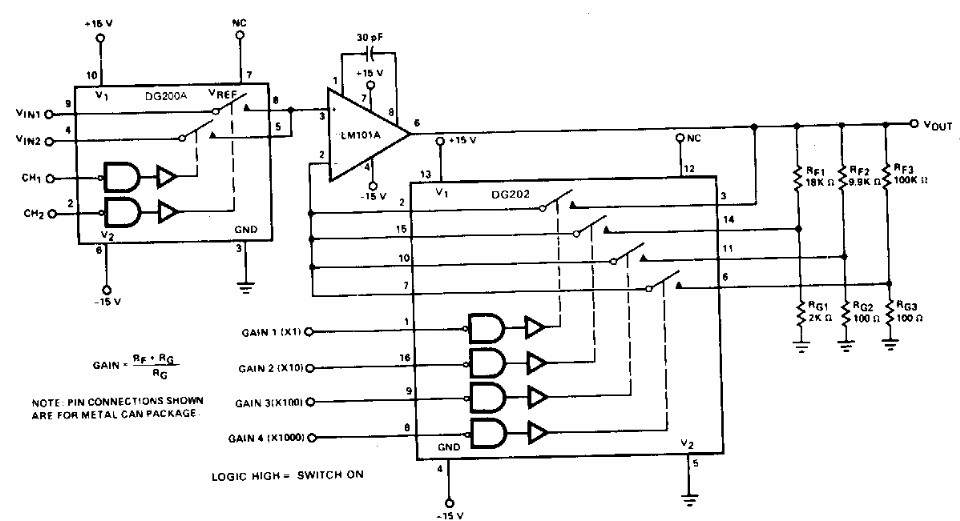

Suggested by Siliconix in 1980s documentation, this circuit uses currently uncommon components. The configuration, however, can serve as a basis for a design with modern equivalent components.
| Clique na imagem para ampliar |
Precision programmed amplifier (CB7264E)
