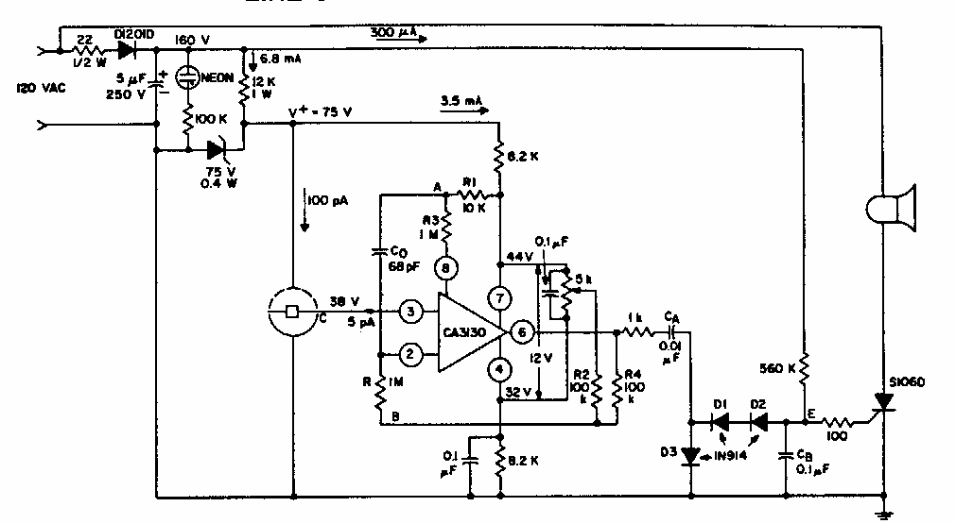

Operated directly from the power grid, this detector was found in an 80's RCA documentation. The sensor is an ionization chamber. The SCR triggers a warning siren.
