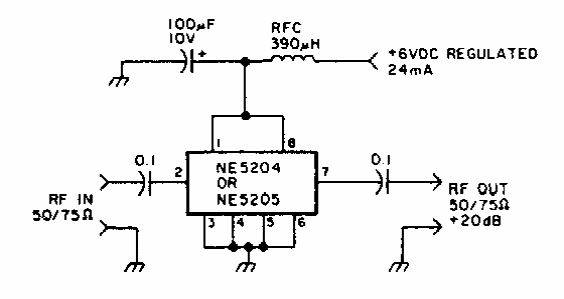

This amplifier obtained from Signetics documentation can operate with signals ranging from the audio range to UHF, around 350 MHz. The circuit has a 20 dB gain.
Audio up to UHF (CB6975E)
- Details
- Written by: Newton C. Braga
This amplifier obtained from Signetics documentation can operate with signals ranging from the audio range to UHF, around 350 MHz. The circuit has a 20 dB gain.
