Frequency to voltage converter (CB6345E)

Details
Written by: Newton C. Braga

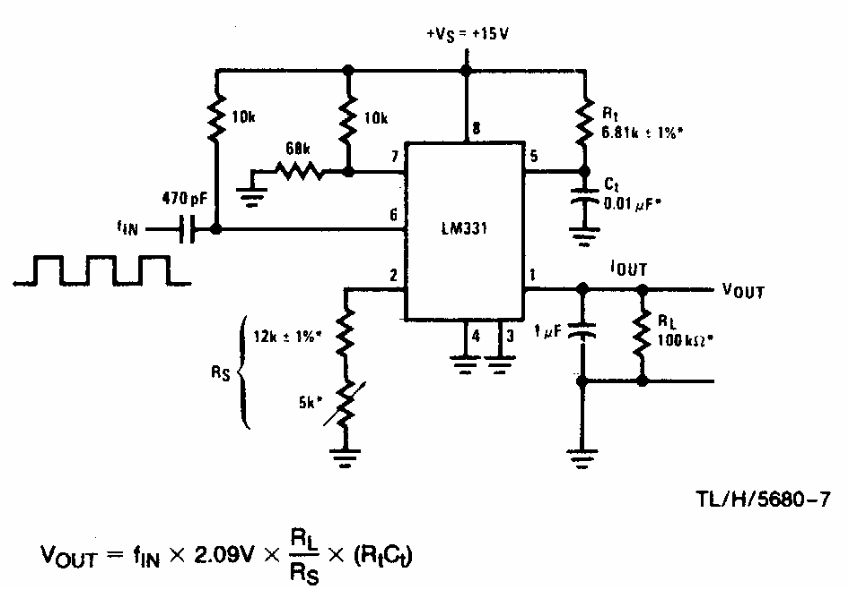

     Found in a 1980s documentation, this circuit uses as base a component of the era. The formula for determining the conversion is given next to the diagram.
