Long period integrator (CB6843E)

Details: Written by: Newton C. Braga

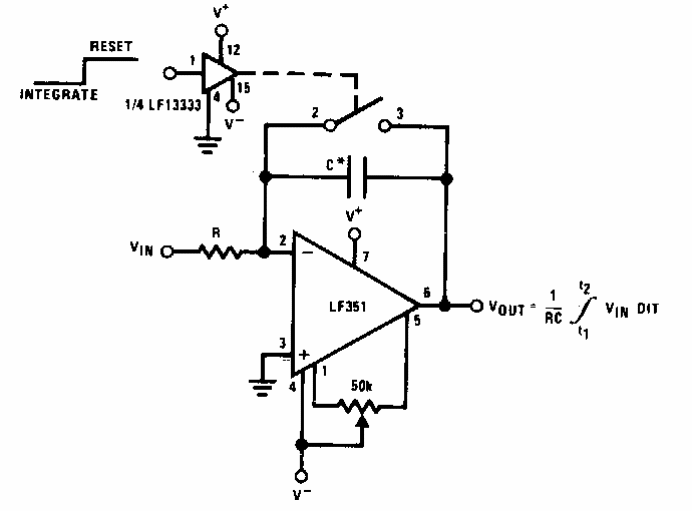

Suggested by National Semiconductor in documentation from the 90s, this circuit makes use of an operational of the time. The configuration can be applied to modern equivalent components
