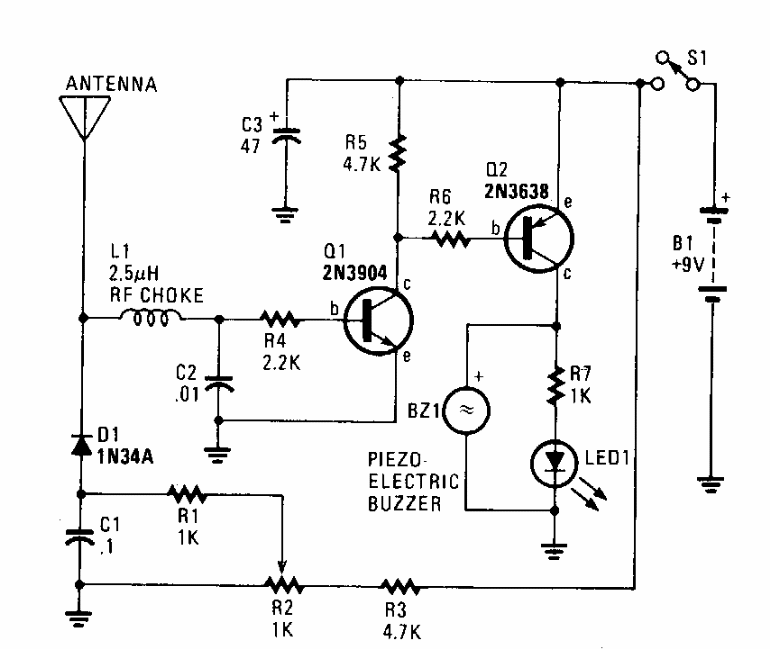

This is a field strength meter found in an 80's Hands On. The circuit operates at frequencies up to 500 MHz and has a buzzer as its indicator. Can be used as a detector for spy transmitters.
| Clique na imagem para ampliar |
RF Sniffer (CB6236E)
- Details
- Written by: Newton C. Braga
