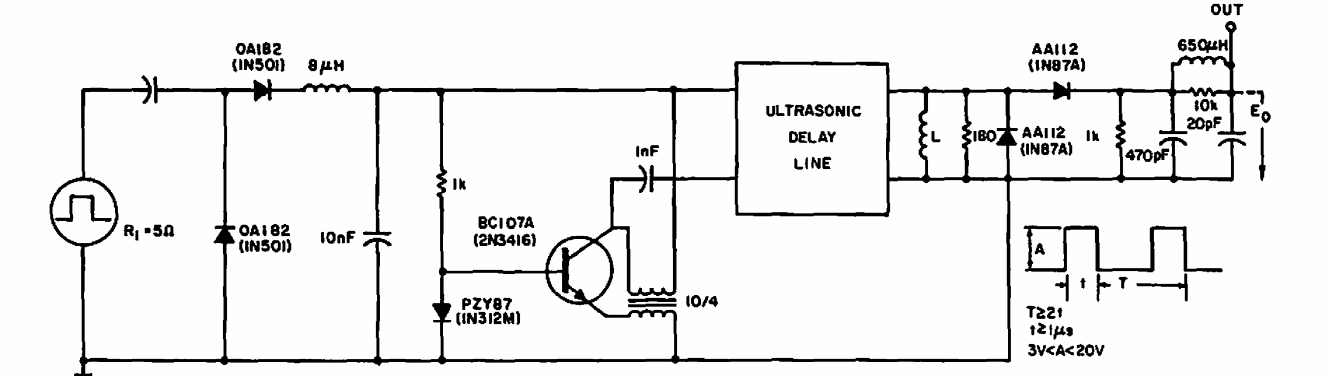

64 us pulse delay (CB6659E)

Found in a 1968 Electronic Design, this circuit makes use of an unusual ultrasonic delay line today.

| Clique na imagem para ampliar |
