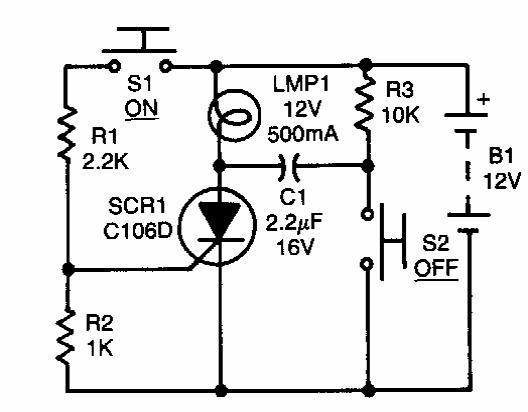

Found in a Radio Electronics we have in the figure a circuit to disconnect an SCR with direct current supply. The charge can be different from a lamp and the power also depends on what is being controlled.
SCR shutdown (CB7053E)
- Details
- Written by: Newton C. Braga
